Honda 120 160 Quarter Midget Degree Wheel Mounting Washer 3/4 Center Hole Wheel

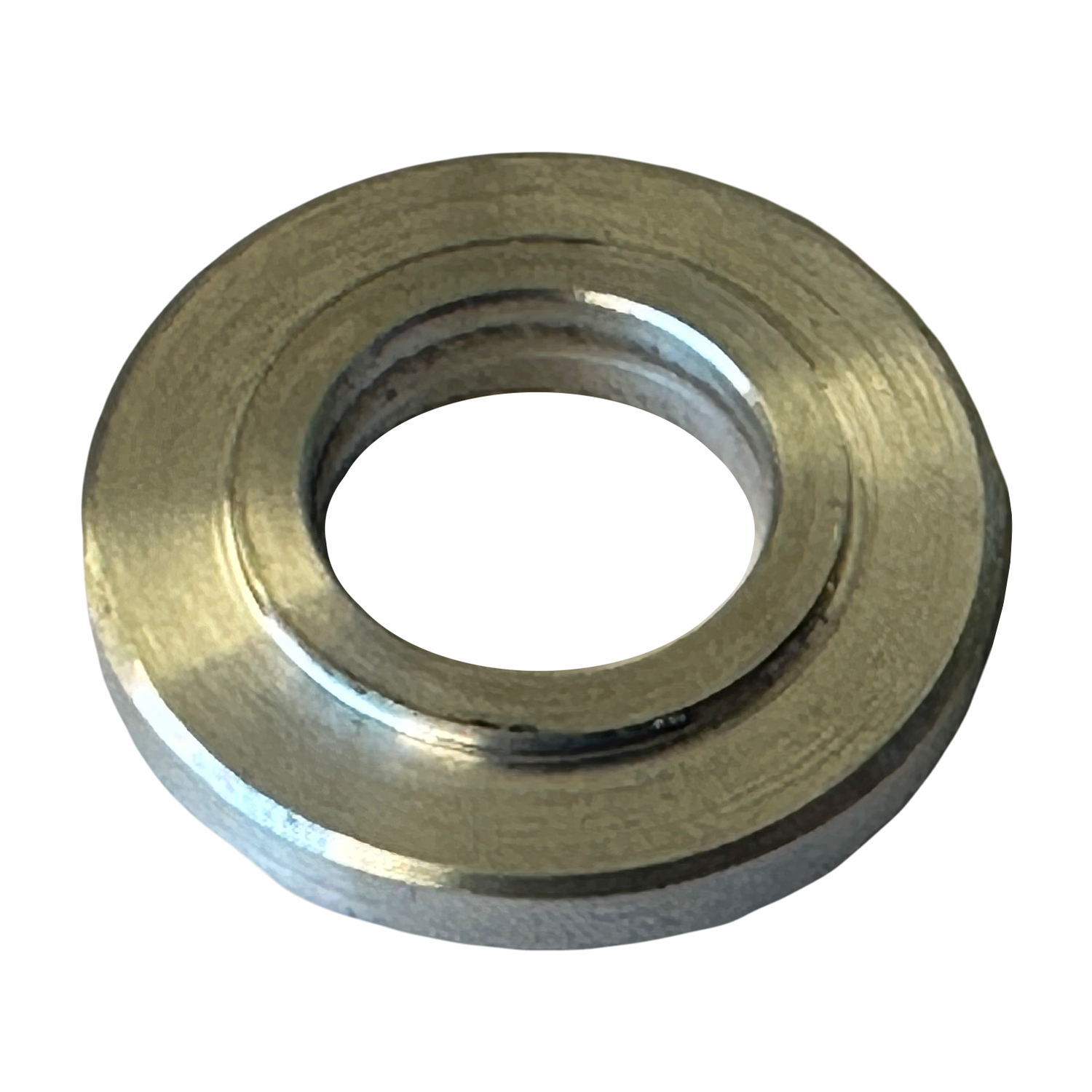

Honda 120 160 Quarter Midget Degree Wheel Mounting Washer 3/4 Center Hole Wheel to go over Thread M14x1.5 - Washer Only.

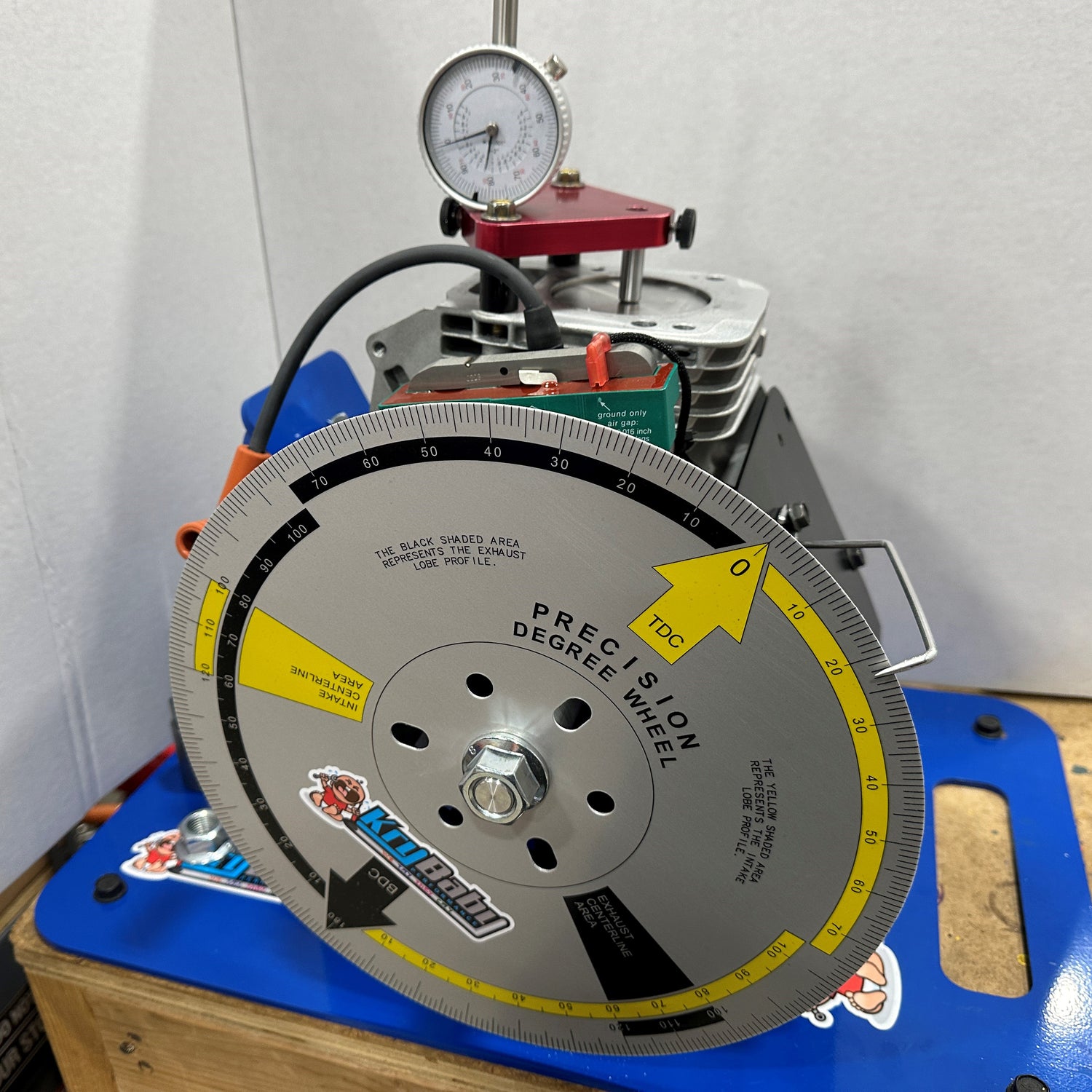

Used to mount your degree wheel to the engine crankshaft to degree the cam. 1/14" dia, 3" long made from billet aluminum - comes with degree wheel locating washer. This is for the washer only all other photos are for reference.

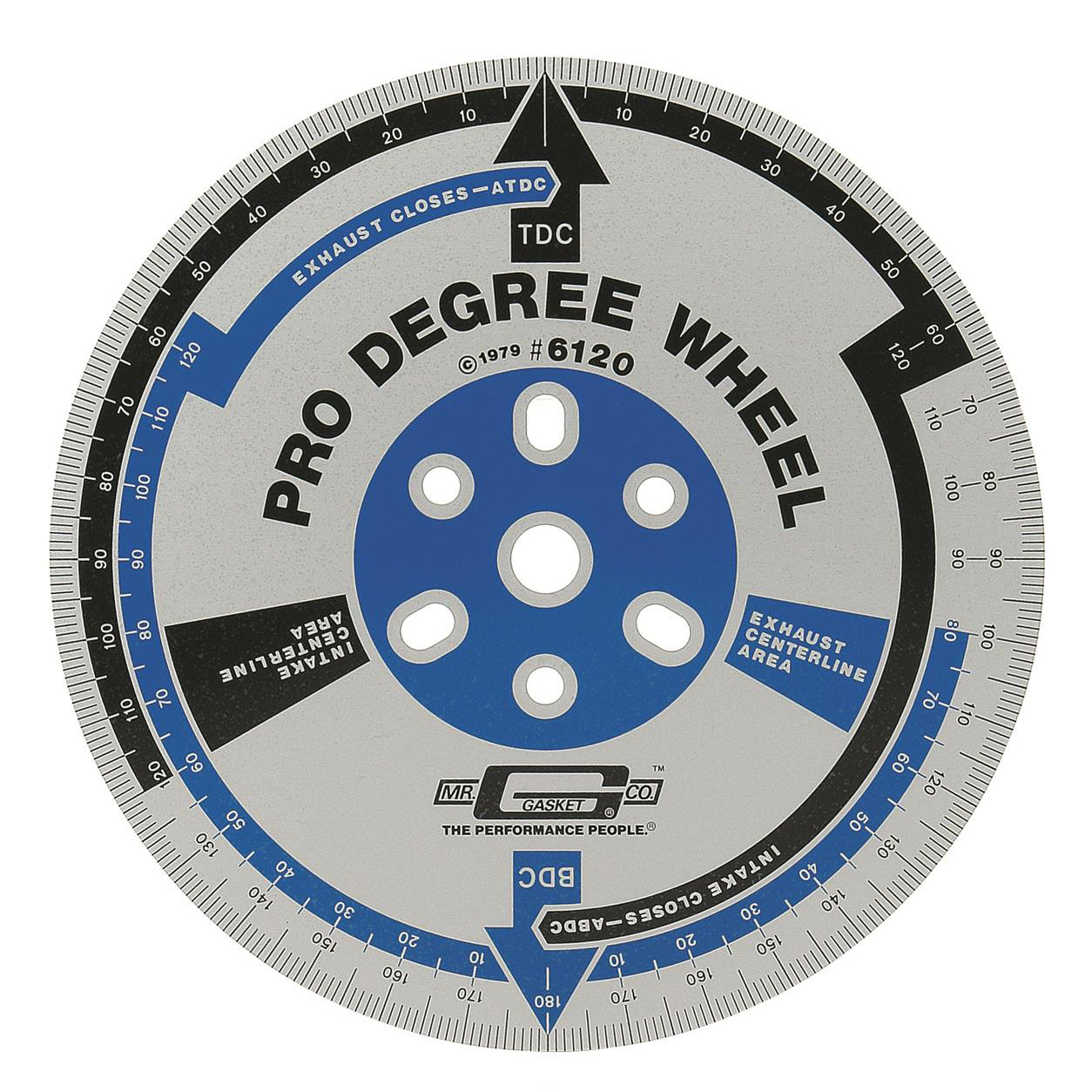

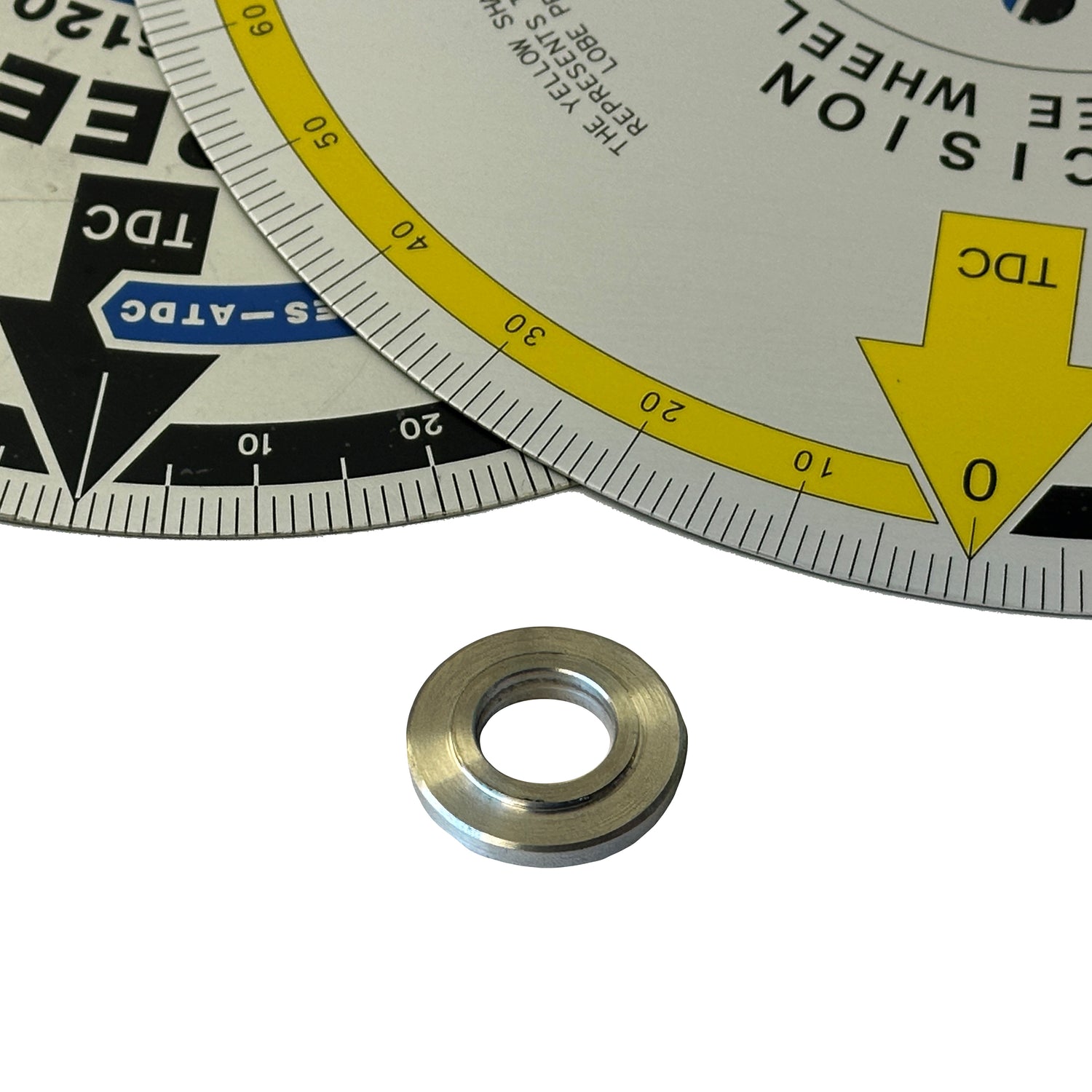

This washer is used to mount the common 11" degree wheel to the the face of the Honda flywheel - these degree wheels have a 3/4" center hole and would be loose on the shaft making the circle out of round and not an accurate measurement. This washer has the correct size lip to accept the 3/4" hole of the degree wheel and also has the correct center hole to fit over the 14mm thread of the crank for a perfect fit. With out this washer the degree wheel will be loose and not accurate. The washer centers the the degree wheel on the crank for perfect measurement. For any degree wheel with a 3/4" center hole - typically most 11" degree wheels or the Jegs wheel and the Mr Gasket Pro Degree Wheel.
